Custom Launch Images with Storyboards since iOS 8


Earlier this week, tweets from Nick Lockwood and James Thomson alerted me to an as yet undocumented new feature in the iOS 8 SDK: you can now use a storyboard scene in place of your app’s launch images.

Creating a Launch Screen File
The launch screen file is displayed as a splash screen while your app is launching. It’s a single, atomic .xib file that uses size classes to support different device resolutions. It contains basic UIKit views, such as UIImageView and UILabel objects, and uses Auto Layout constraints. Xcode adds a default launch screen file, called LaunchScreen.xib, to your project.

Follow these guidelines when creating a launch screen file:

  • Use only UIKit classes.
  • Use a single root view that is a UIView or UIViewController object.
  • Don’t make any connections to your code (don’t add actions or outlets).
  • Don’t add UIWebView objects.
  • Don’t use any custom classes.
  • Don’t use runtime attributes.

You can add a launch screen file to an older Xcode project.

To create a launch screen file for an existing project

Choose File > New > File.
Under iOS, select User Interface.

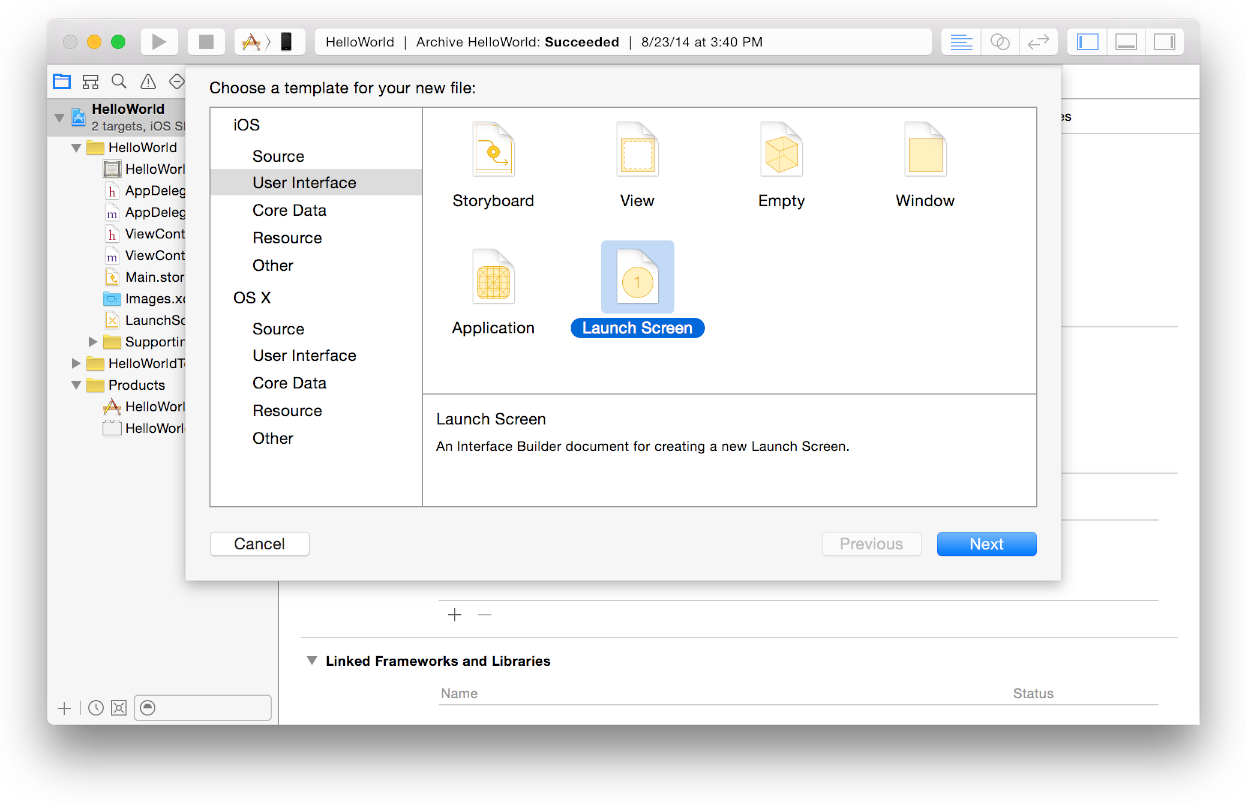

Select Launch Screen and click Next.
../Art/3_create_launch_screen_file_2x.png
Enter a file name in the Save As text field and click Create.
To set the launch screen file

In necessary, open the “App Icons and Launch Images” section of the General pane
From the Launch Screen File pop-up menu, choose a launch screen file.

Apple Developer
oleb.net

Comments

Most Favorite Posts

Pattern: Riblets vs. VIPER

Engineering the architecture behind Uber's new rider app

Not being held back by our extensive codebase and previous design choices gave us the freedom where we otherwise would have made compromises. The outcome is the sleek new app you see today, which implements a new mobile architecture across both iOS and Android. Read on to learn why we felt the need to create this new architecture pattern, called Riblets, and how it helps us reach our goals.

The platforms share:

Core architectureClass namesInheritance relationships between business logic unitsHow business logic is dividedPlugin points (names, existence, structure, etc.)Reactive programming chainsUnified platform components
Each Riblet is made up of one Router, Interactor, and Builder with its Component (hence the name), and optional Presenters and Views. The Router and Interactor handle the business logic, while the Presenter and View handle the view logic.

Uber

Implementing UI tests on iOS and Android using screenshot comparison tools

Have you ever thought when writing or maintaining UI tests, there must be a better way?

Take a look at screenshot tests provided by Google Firebase and Facebook:

ios-snapshot-test-case
A "snapshot test case" takes a configured UIView or CALayer and uses the renderInContext: method to get an image snapshot of its contents. It compares this snapshot to a "reference image" stored in your source code repository and fails the test if the two images don't match.

GitHub Facebook

screenshot-tests-for-android
Testing rendering for your Android app is hard. How do you prevent visual regressions in paddings and margins and colors from creeping in?
Iterating on UI code is hard. How do you quickly verify that your layout or view changes work correctly in all configurations?

screenshot-tests-for-android can solve these problems by providing a test framework that checks for visual differences across changes.

GitHub Facebook

Google Firebase Test Lab
Test Lab lets you run Espresso, …

Stetho - A Chrome debug bridge for Android applications

Stetho is a sophisticated debug bridge for Android applications. When enabled, developers have access to the Chrome Developer Tools feature natively part of the Chrome desktop browser. Developers can also choose to enable the optional dumpapp tool which offers a powerful command-line interface to application internals.

Facebook Github

WireMock

WireMock is a flexible library for stubbing and mocking web services. Unlike general purpose mocking tools it works by creating an actual HTTP server that your code under test can connect to as it would a real web service.

It supports HTTP response stubbing, request verification, proxy/intercept, record/playback of stubs and fault injection, and can be used from within a unit test or deployed into a test environment.

Although it’s written in Java, there’s also a JSON API so you can use it with pretty much any language out there.

WireMock.org

How to link to TestFlight App in iOS

There are two things you need to do. First, check to see if TestFlight is installed. Then create a new link to your app.

NSURL *customAppURL = [NSURL URLWithString:@"itms-beta://"];
if ([[UIApplication sharedApplication] canOpenURL:customAppURL]) {

    // TestFlight is installed

    // Special link that includes the app's Apple ID
    customAppURL = [NSURL URLWithString:@"https://beta.itunes.apple.com/v1/app/978489855"];
    [[UIApplication sharedApplication] openURL:customAppURL];
}

This special https://beta.itunes.apple.com URL will be opened directly in TestFlight.

Finally, if you are using iOS 9 (or later), you need to make an addition to your Info.plist to get the canOpenURL: method to work.

If your app is linked on or after iOS 9.0, you must declare the URL schemes you want to pass to this method. Do this by using the LSApplicationQueriesSchemes array in your Xcode project’s Info.plist file. For each URL scheme you want your app to use with this method, add it …

iOS 7 Blur Effect

Combining a strong colour with a blurred and translucent UINavigationBar in iOS 7.

// cheers to @stroughtonsmith for helping out with this one
UIColor *barColour = [UIColor colorWithRed:0.13f green:0.14f blue:0.15f alpha:1.00f];

UIView *colourView = [[UIView alloc] initWithFrame:CGRectMake(0.f, -20.f, 320.f, 64.f)];
colourView.opaque = NO;
colourView.alpha = .7f;
colourView.backgroundColor = barColour;

self.navigationBar.barTintColor = barColour;

[self.navigationBar.layer insertSublayer:colourView.layer atIndex:1];

GitHub Gist
See also
iOS7-Trans-Blur

And also
myView.backgroundColor = [UIColor clearColor];
UIToolbar* bgToolbar = [[UIToolbar alloc] initWithFrame:myView.frame];
bgToolbar.barStyle = UIBarStyleDefault;
[myView.superview insertSubview:bgToolbar belowSubview:myView];

Why bother replicating the effect? Just draw a UIToolbar behind your view.
StackOverflow

NSURLConnection with Accept-Encoding: gzip

For quite some time I ranted about not being able to use compressed network communcation out-of-the-box on the iPhone.

Despite being undocumented (or I just overlooked the hint), NSURLConnection does gzip decompression transparently!

That’s how to use it:

NSMutableURLRequest *request = [NSMutableURLRequest requestWithURL:url
cachePolicy:NSURLRequestReloadIgnoringLocalCacheData
timeoutInterval:60.0];
// set explicitly:
[request setValue:@"gzip" forHTTPHeaderField:@"Accept-Encoding"];

MRo BLOG
